Volvo Haldex Gen 4 DEM — part number 5WP33518-03

Differential Electronic Module (DEM) · rear differential / AWD control · 2009–2014 Volvo XC90 and Gen 4 Haldex cohort

The DEM is the computer that runs Volvo's Haldex all-wheel-drive coupling: it commands the AOC (active on-demand coupling) oil pump that pressurizes the clutch sending torque to the rear axle. When the DEM fails, the car falls back to front-wheel drive and logs AWD fault codes. 5WP33518-03 is the Generation 4 module — this page covers how to identify it, what it fits, why it fails, and what an honest bench test looks like.

Part of our Volvo Haldex AWD generations guide — the full platform context.

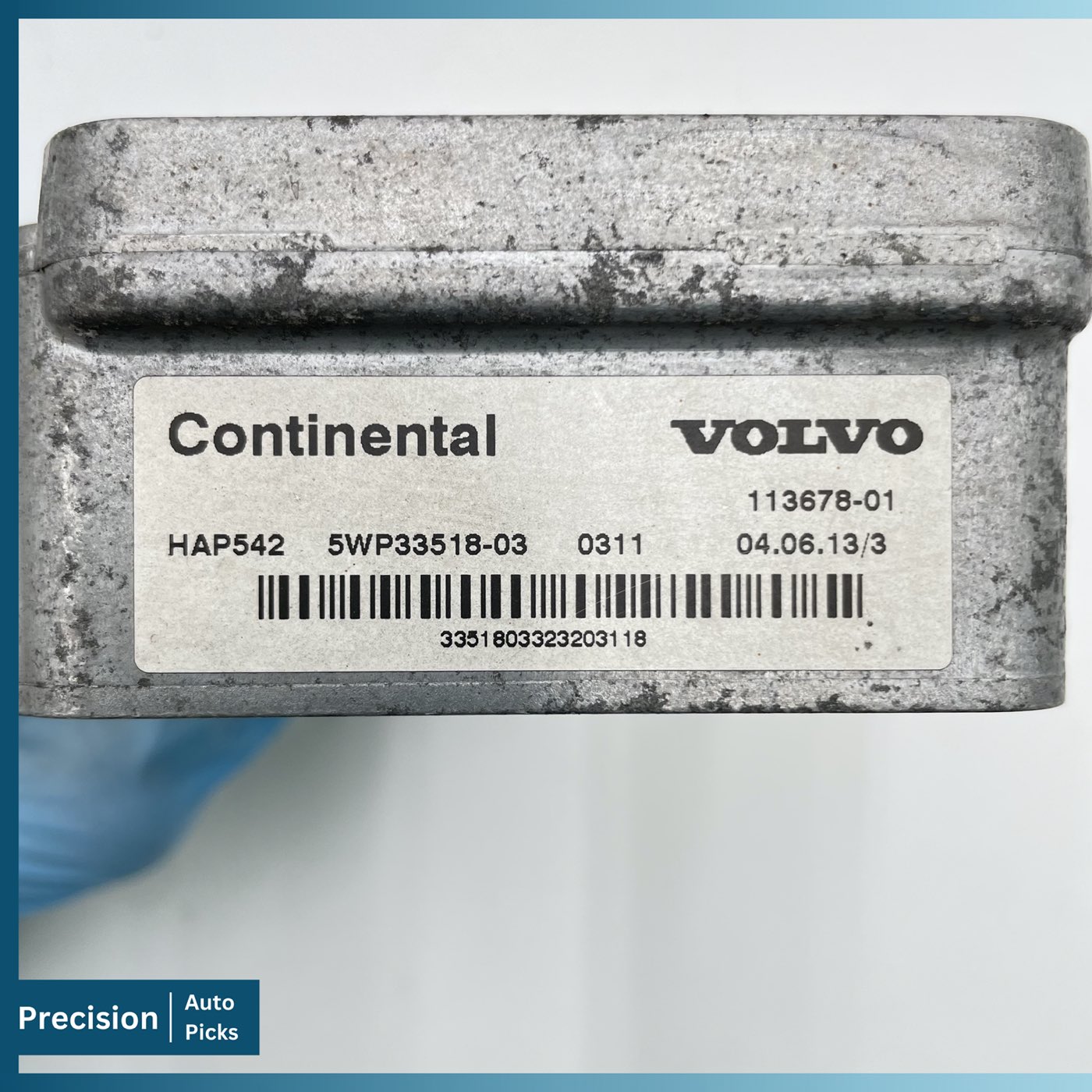

Identifying the part — read the sticker, not the model year

Generation mislabeling is endemic in this market: listing titles routinely claim year spans the part never shipped in. Trust the numbers printed on the module's label:

Gen 3 (5WP33504 family / 36001160) ended with the 2008 XC90. The well-known enthusiast "Real AWD" upgrade discussed on Volvo forums targets the Gen 3 36001160 module — not this Gen 4 unit.

Fitment

Confirmed: 2009–2014 Volvo XC90. The same part-number family also appears across the wider Gen 4 Haldex cohort — XC70 and S80 (2009–2012), XC60 (2010–2012), S60 and V70 (2011–2012) — but DEM software is model- and year-specific within the generation. The reliable rule:

• Match the exact part number on your own module's sticker. Same number in, same number out is the safe swap.
• Cross-model installs may require a Volvo VIDA software load or a program-transfer service even when the hardware matches.

Why these modules fail

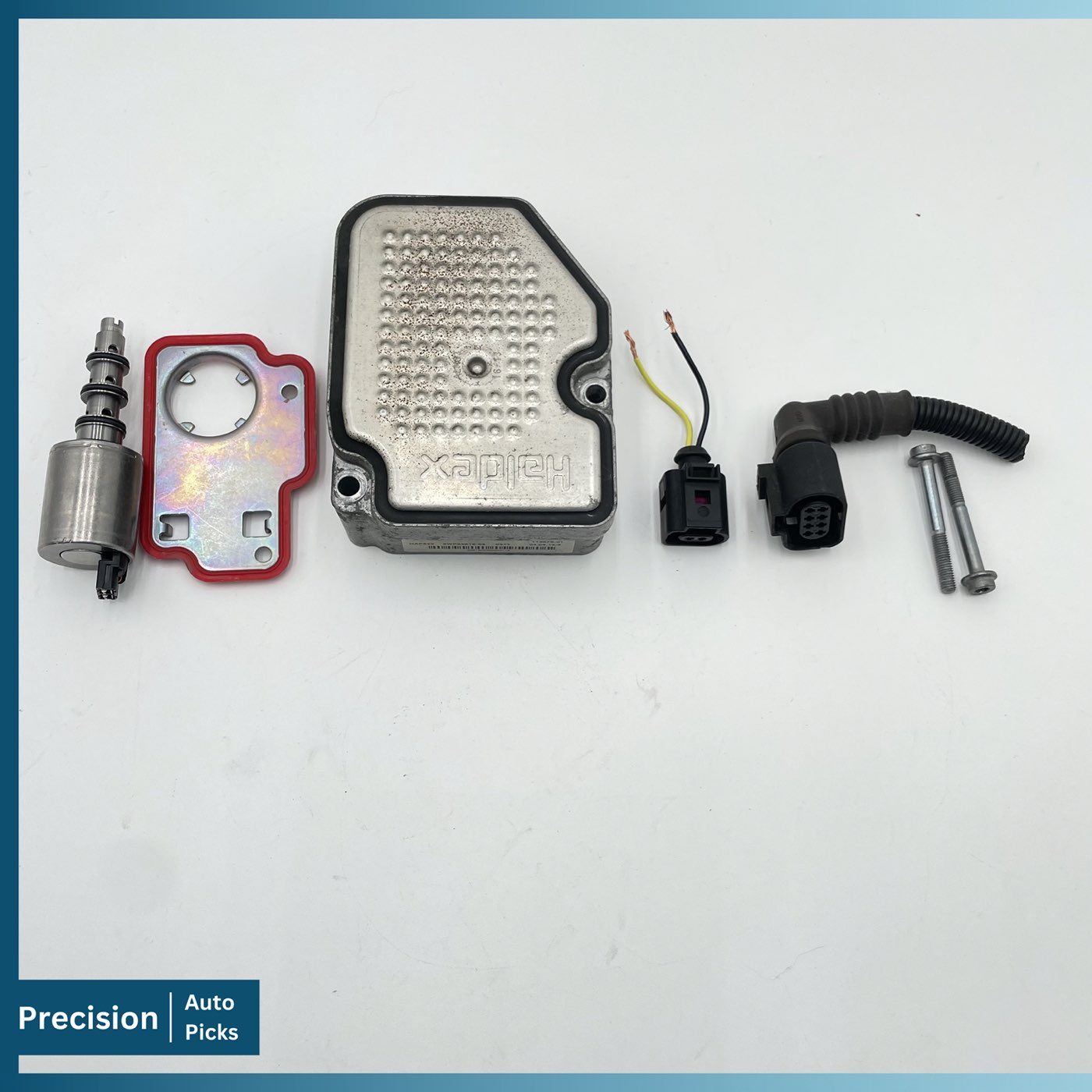

• The P1889 cascade — the AOC oil pump wears, draws excessive current, and drags the DEM's output stage down with it. This is the most common death of a Gen 4 DEM, and it is why a replacement module should always be installed with a fresh AOC pump, filter, and oil: a worn pump will take out the replacement too.
• P0961 — board-level failure inside the module.
• Connector water intrusion — the harness connector is a known weak point; inspect the pigtail when diagnosing.

What a real bench test looks like

"Tested" should mean more than "it looked fine." A meaningful DEM bench test powers the module through its 8-pin connector with a current-limited supply (a bulb in series works as the limiter):

• A good module draws normal current on power-up — the series bulb dims or glows at partial brightness.
• A shorted module pulls maximum current immediately — the series bulb stays full bright.
• The strongest functional check needs no donor car: energize the module and watch its 2-pin pump output with a test lamp. Lamp lights = the module is commanding the pump = the output stage works.

Gen 4 behavior worth knowing: the output stage is current-supervised (the same supervision behind the P1889 strategy). A small test lamp draws far less than the real pump, so the module lights it and then switches the output off. That shutoff is the Gen 4 protection working as designed — not a defect.

Repair-path cost ladder

Beware of outlier listings asking $400+ for untested used units under names like "chassis brain box" — the name on the sticker and a demonstrated test are what define value here.

Buy a bench-tested unit

We currently have a bench-tested 5WP33518-03 in stock — tested on video using the method described above, with every label number photographed so you can match your sticker before buying.

Not sure yours matches? Questions are welcome through our eBay store — send a photo of your module's sticker and we will compare numbers before you spend anything.

Written by William, owner of Precision Auto Picks — he pulls, tests, and ships every part himself. More about the shop ›
